10.1 inch epaper display DES full color electronic paper large 2232x1680 eink display, GDEW101C01 (PRESALE)
Categroy:
DES
Buy It Now
- Description
- Specification
- Video
-
- Commodity name: 10.1 inch epaper display DES full color electronic paper large 2232x1680 eink display, GDEW101C01 (PRESALE)
2232x1680/ 16 Grayscale
INTRODUCTION
This is a DES (what is DES?) 10.1 inch paper display full color electronic paper large 2232x1680 eink display , and the display is capable to display images with 4096 colors content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries.
We could provide electronic paper display accessories for you.
Datasheet is under the Datasheets & Files section.
FEATURE
● Versatile. Use in portrait or landscape format
● It is manufactured using a new process: DES
● Contrast Ratio is higher than normal e-paper display
● Power consumption is lower than normal e-paper display
● With color filter, it supports a full color model with 4096 colors display.
● Wide working temperature range: -10℃~60℃
-
PARAMETERS
PART NUMBER
GDEW101C01
SIZE
10.1 inch
TECHNOLOGY
DES
RESOLUTION
2232x1680
OUTLINE SIZE(mm)
218.9x160x1.05
ACTIVE SIZE(mm)
203.2013x152.4096
PIXEL PITCH(mm)
0.09104x0.09072
OPERATING TEMP.
-10℃~60℃
STORAGE TEMP.
-25℃~70℃
CONNECTOR
40 Pin FPC
MAX GRAYSCALE
16
COLOR
Full Color
INTERFACE
Parallel
FULL REFRESH(s)
1
POWER CONSUMPTION OF THE REFRESH(mW)
285
STANDBY POWER CONSUMPTION (mW)
1.3

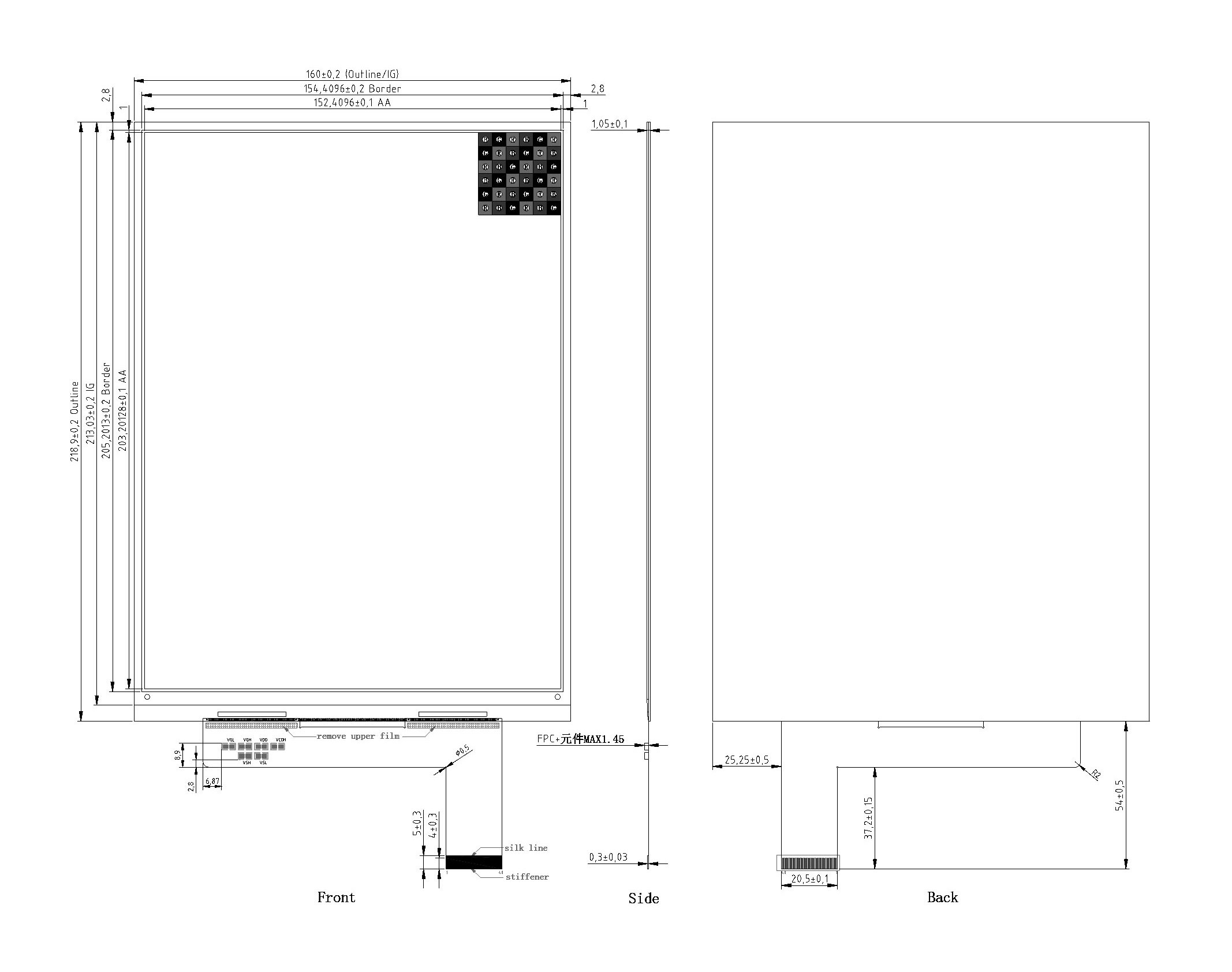

DRAWING
