7.8 inch DES epaper screen parallel interface extended operating temperature, GDEW078M01 (PRESALE)

Categroy:

Parallel E-Paper

Monochrome DES

1872x1040/ 16 Grayscale

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 7.8 inch DES epaper screen parallel interface extended operating temperature, GDEW078M01 (PRESALE)

    1872x1040/ 16 Grayscale

    INTRODUCTION

    This is a DES (what is DES?) 7.8 inch epaper screen with 1872x1404 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

    We could provide front light, touch screen and other accessories for you.

    Datasheet are under the Datasheets & Files section.




    FEATURE

    ●  Black and white monochrome is easy to read.

    ●  Versatile. Use in portrait or landscape format.

    ●  Contrast Ratio is higher than normal e-paper display.

    ●  Bistable. (Will continue to display with no power source)

    ●  Wide operating temperature range: -10℃~60℃

  • PARAMETERS

    PART NUMBER

    GDEW078M01

    SIZE

    7.8 inch

    TECHNOLOGY

    DES

    RESOLUTION

    1872x1404

    OUTLINE SIZE(mm)

    127.6x173.8x1.05

    ACTIVE SIZE(mm)

    118.638x158.184

    PIXEL PITCH(mm)

    0.0845x0.0845

    OPERATING TEMP.

    -10℃~60℃

    STORAGE TEMP.

    -25℃~75℃

    CONNECTOR

    40 Pin

    MAX GRAYSCALE

    16

    COLOR

    Black, White

    INTERFACE

    Parallel

    FULL REFRESH(s)

    1

    POWER CONSUMPTION OF THE REFRESH(mW)

    285

    STANDBY POWER CONSUMPTION (mW)

    1.3

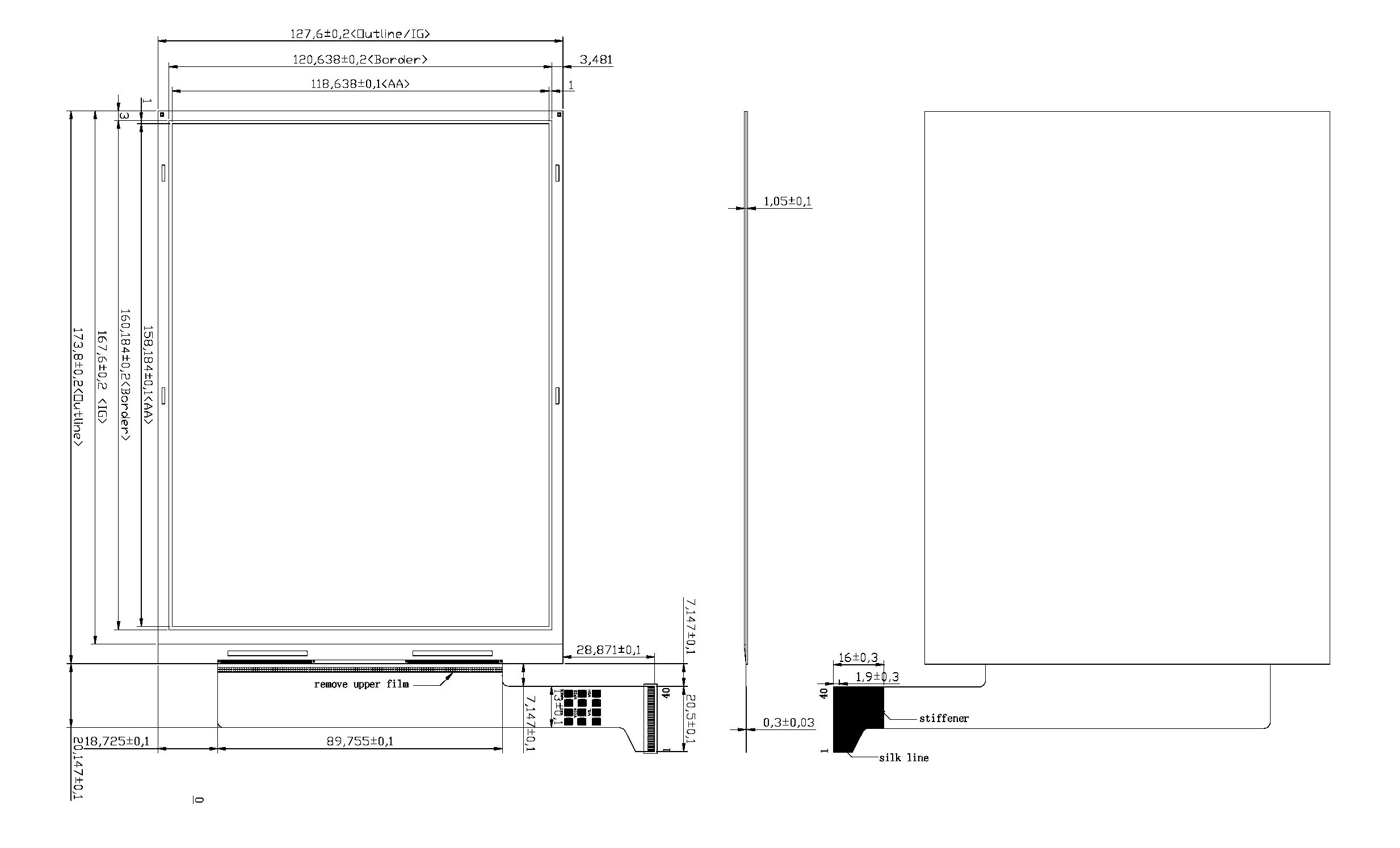

    DRAWING









  •
