5.83 inch DES epaper screen module extra wide operating temperature, GDEW0583M09 (PRESALE)

Categroy:

DES

Others


Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 5.83 inch DES epaper screen module extra wide operating temperature, GDEW0583M09 (PRESALE)

    INTRODUCTION

    This is a DES (what is DES?) 5.83 inch epaper screen with 648x480 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

    We could provide front light, touch screen and other accessories for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software




    FEATURE

    ●  Black and white monochrome is easy to read.

    ●  Versatile. Use in portrait or landscape format.

    ●  Contrast Ratio is higher than normal e-paper display.

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor.

    ●  Wide operating temperature range: -10℃~60℃





    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  • PARAMETERS

    PART NUMBER

    GDEW0583M09

    SIZE

    5.83 inch

    TECHNOLOGY

    DES

    IC

    UC8179

    RESOLUTION

    648x480

    OUTLINE SIZE(mm)

    125.4x99.5x1.22

    ACTIVE SIZE(mm)

    119.232x88.32

    PIXEL PITCH(mm)

    0.184x0.184

    OPERATING TEMP.

    -10℃~60℃

    STORAGE TEMP.

    -25℃~70℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black,White

    INTERFACE

    SPI

    FULL REFRESH(s)

    3

    POWER CONSUMPTION OF THE REFRESH(mW)

    26.4

    STANDBY POWER CONSUMPTION (mW)

    0.0165

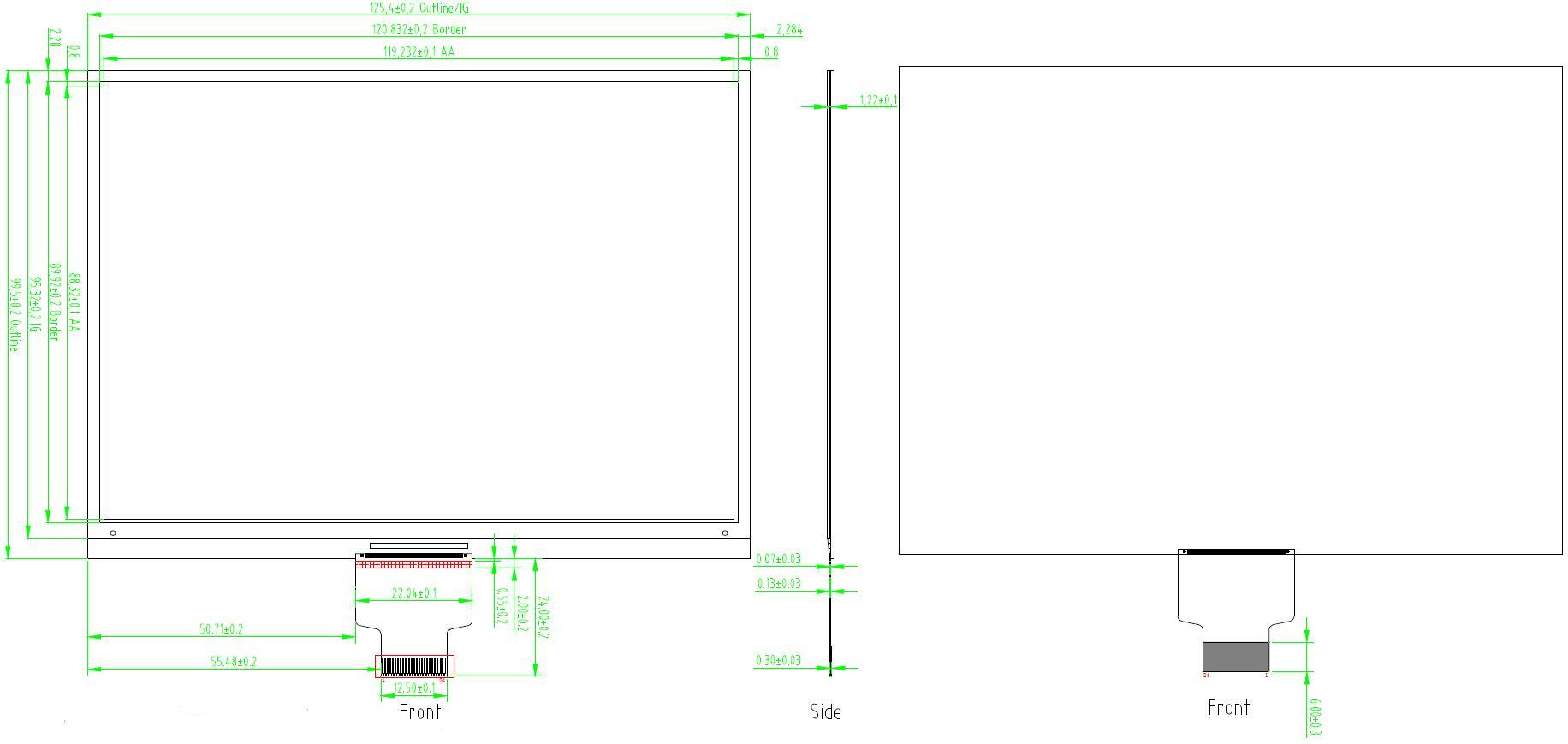

    DRAWING



  •
