8 inch large e-paper display parallel panel 768X1024 resolution, GDEW080T5(EOL)

Categroy:

Large E-Paper

Parallel E-Paper

1024x768/ Parallel Interface/ 16 Grayscale

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 8 inch large e-paper display parallel panel 768X1024 resolution, GDEW080T5(EOL)

    1024x768/ Parallel Interface/ 16 Grayscale

     INTRODUCTION

    This is a 8 inch e ink e paper display panel with 1024x768 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 8 inch e-paper display GDEW080T5 is an ideal choice for applications such as shelf label, industrial instrument, ebook reader and so on.

    We could provide Front light, Touch screen and other accessories for you.

    Sample code and datasheet are under the Datasheets & Files section.

    Use our free e-paper software to prepare your bitmap image for this display.




    FEATURE

    ●  Black and white monochrome is easy to read

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  Support Partial Refresh. The partial refresh rate is 1s/frame

    ●  Low power consumption, basically power is only required for refreshing





    DEVELOPMENT PLATFORM AVAILABEL

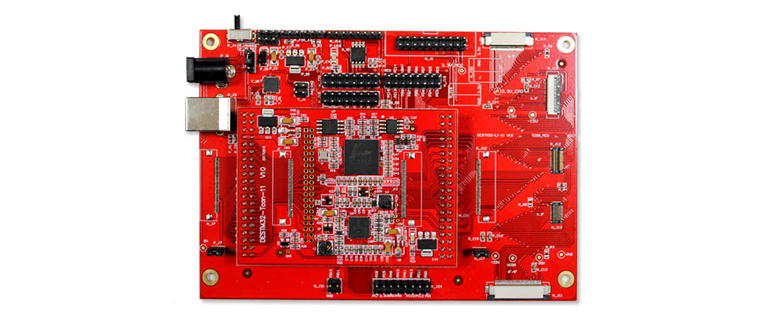

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

    Demo Kit: DESTM32-T



  • PARAMETERS

    PART NUMBER

    GDEW080T5

    SIZE

    8 inch

    IC

    UC8142+UC8143

    TYPE

    Dot Matrix

    RESOLUTION

    1024x768

    OUTLINE SIZE(mm)

    178.56x134.11x1.18

    ACTIVE SIZE(mm)

    162.82x122.11

    PIXEL PITCH(mm)

    0.159x0.159

    OPERATING TEMP.

    0℃~50℃

    STORAGE TEMP.

    -25℃~70℃

    CONSTRAST RADIO

    8:1

    CONNECTOR

    34 Pin

    MAX GRAYSCALE

    16

    COLOR

    Black, White

    INTERFACE

    Parallel

    FULL REFRESH(s)

    1

    PARTIAL REFRESH(s) 1

    POWER CONSUMPTION OF THE REFRESH(mW)

    600

    STANDBY POWER CONSUMPTION (mW)

    0.4

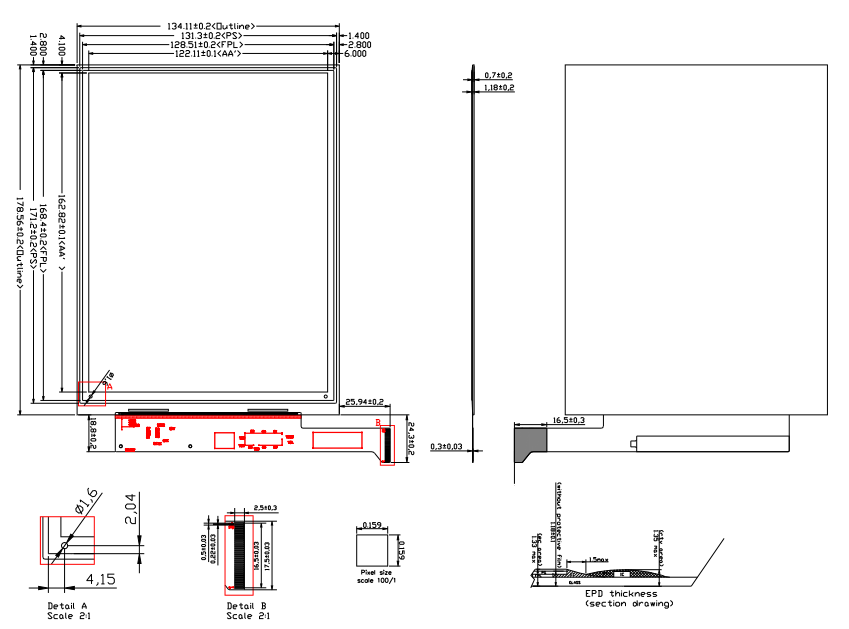

    DRAWING
