4.3 inch e-paper display for e-reader parallel interface GDE043A2(EOL)

Categroy:

Parallel E-Paper

Small E-Paper

1024x768/ Parallel Interface/ 16 Grayscale

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 4.3 inch e-paper display for e-reader parallel interface GDE043A2(EOL)

    1024x768/ Parallel Interface/ 16 Grayscale

     INTRODUCTION

    This is a 4.3 inch e-paper display with 800x600 resolution, Parallel interface, and the e-paper display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 4.3 inch e-paper display GDE043A2 is an ideal choice for applications such as shelf label, industrial instrument and so on.

    We could provide Front light, Touch screen and other accessories for you.

    Sample code and datasheet are under the Datasheets & Files section.

    Use our free e-paper software to prepare your bitmap image for this display.




    FEATURE

    ●  Black and white monochrome is easy to read

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  Low power consumption, basically power is only required for refreshing





    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

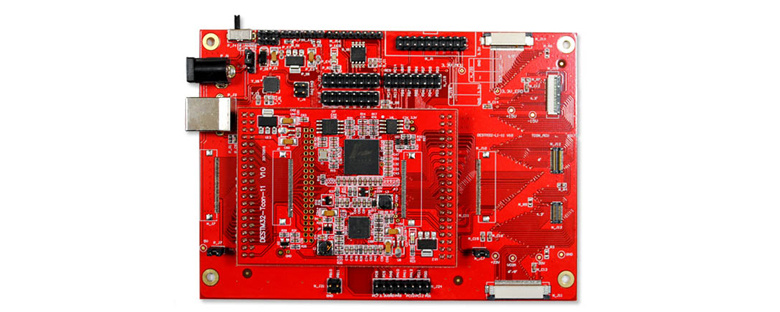

    Demo Kit: DESTM32-T
  • PARAMETERS

    PART NUMBER

    GDE043A2

    SIZE

    4.3 inch

    TYPE

    Dot Matrix

    IC

    HX8705

    RESOLUTION

    800x600

    OUTLINE SIZE(mm)

    104x74.6x1.24

    ACTIVE SIZE(mm)

    88x66

    PIXEL PITCH(mm)

    0.11x0.11

    OPERATING TEMP.

    0℃~50℃

    STORAGE TEMP.

    -20℃~70℃

    CONSTRAST RADIO

    Above 8:1

    MAX GRAYSCALE

    16

    COLOR

    Black,White

    INTERFACE

    Parallel

    FULL REFRESH(s)

    1

    PARTIAL REFRESH(s) 1

    POWER CONSUMPTION OF THE REFRESH(mW)

    600

    STANDBY POWER CONSUMPTION (mW)

    0.4

    FRONT LIGHT, TOUCH SCREEN

    Optional

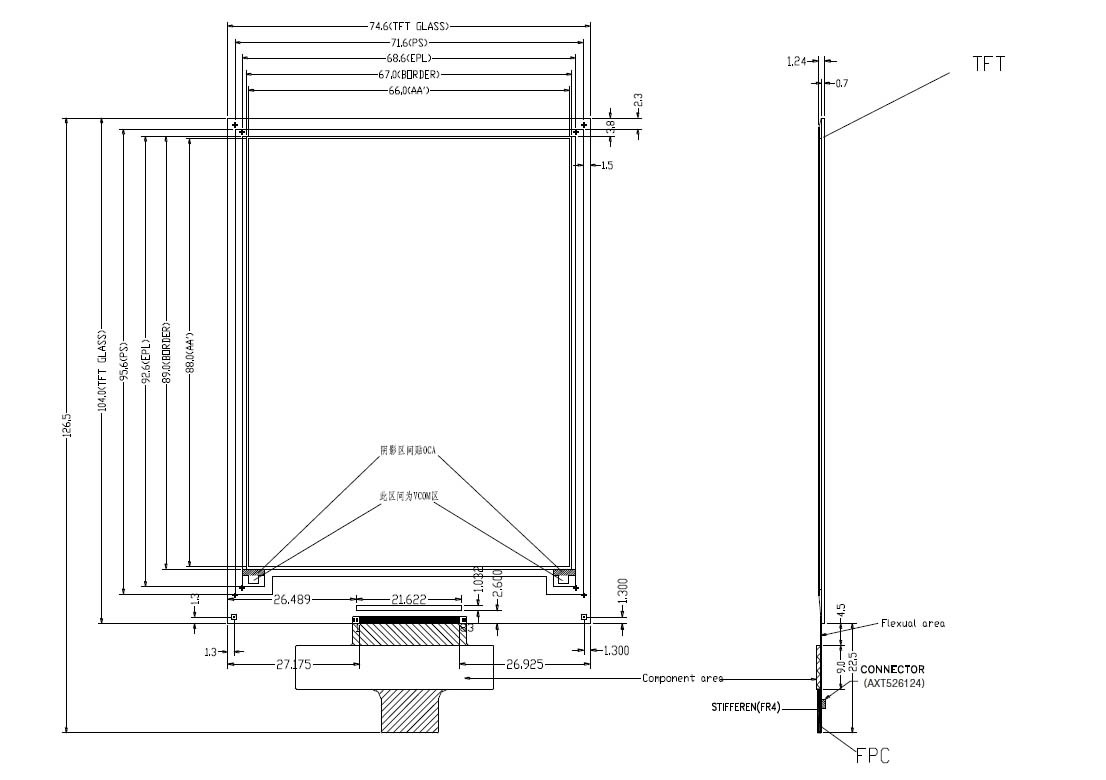

    DRAWING
