Large size 12.48 inch e-ink display 4 Grayscale SPI e paper, GDEW1248T3(EOL)
Categroy:
Large E-Paper
Buy It Now
- Description
- Specification
- Video
-
- Commodity name: Large size 12.48 inch e-ink display 4 Grayscale SPI e paper, GDEW1248T3(EOL)
1304x984/ 4 Grayscale/ SPI Interface
INTRODUCTION
This is a 12.48 inch e-ink display with two FPC interfaces, 1304x984 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
This 12.48 inch e-ink display GDEW1248T3 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.
We could provide front light, touch screen and other accessories for you.
Sample code and datasheet are under the Datasheets & Files section.
Use our free e-paper software to prepare your bitmap image for this display.
FEATURE
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Color Optional. We also have other color for you to choose.
DEVELOPMENT PLATFORM AVAILABEL

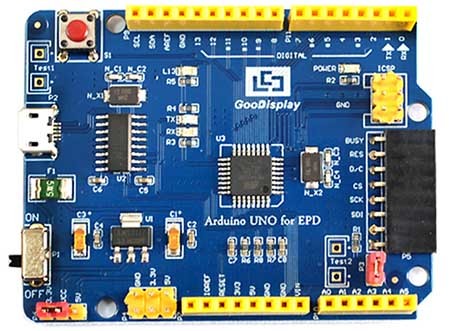

We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

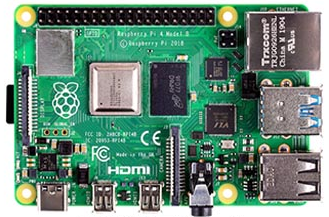

STM32 Raspberry Pi -
PARAMETERS
PART NUMBER
GDEW1248T3
SIZE
12.48 inch
TYPE
Dot Matrix
IC
UC8179
RESOLUTION
1304x984
OUTLINE SIZE(mm)
261.5x211x1.18
ACTIVE SIZE(mm)
252.976x190.896
PIXEL PITCH(mm)
0.194x0.194
OPERATING TEMP.
0℃~50℃
STORAGE TEMP.
-25℃~70℃
CONNECTOR
24 Pin FPC
MAX GRAYSCALE
4
COLOR
Black,White
INTERFACE
SPI
FULL REFRESH(s)
6
POWER CONSUMPTION OF THE REFRESH(mW)
26.4
STANDBY POWER CONSUMPTION (mW)
0.71

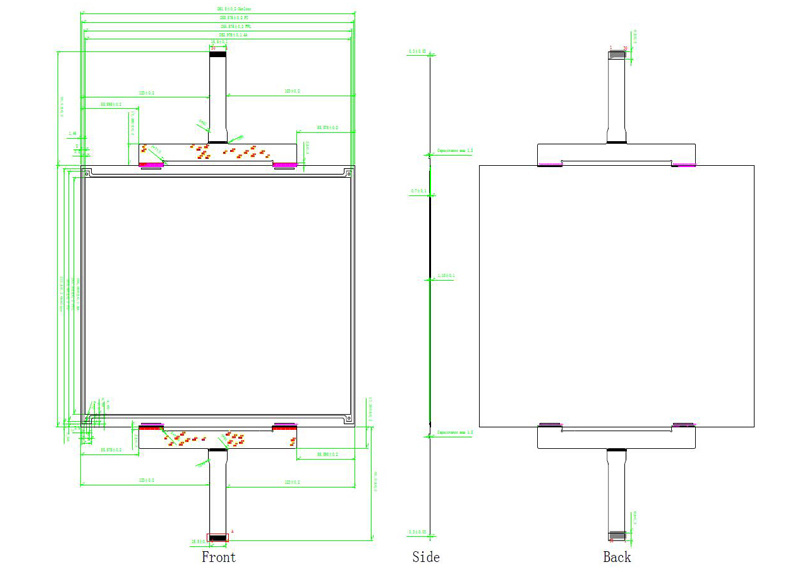

DRAWING
-
