7.5 inch high resolution 880x528 e-ink display module, GDEH075T90 (EOL)
Categroy:
Large E-Paper
Buy It Now
- Description
- Specification
- Video
-
- Commodity name: 7.5 inch high resolution 880x528 e-ink display module, GDEH075T90 (EOL)
This is a 7.5 inch e-ink display with 880x528 resolution, SSD1677, SPI interface, and the electronic paper display supports 4 grayscale.
* This 7.5 inch e-ink display is out of stock currently, you could choose the similar product: GDEY075T7 (7.5 inch, 800x480 resolution, UC8179, SPI interface, supports 4 grayscale.)
INTRODUCTION
This is a 7.5 inch e-paper display with 880x528 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
This 7.5 inch e-paper display GDEH075T90 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.
We could provide front light, touch screen and other accessories for you.
Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html
FEATURE
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Color Optional. We also have other color for you to choose.
DEVELOPMENT PLATFORM AVAILABEL
We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.
STM32 Arduino UNO ESP8266
Raspberry Pi ESP32 -
PARAMETERS
PART NUMBER
GDEH075T90
SIZE
7.5 inch
TYPE
Dot Matrix
IC
SSD1677
RESOLUTION
880x528
OUTLINE SIZE(mm)
170.2x111.2x1.25
ACTIVE SIZE(mm)
163.24x97.94
PIXEL PITCH(mm)
0.1855x0.1855
OPERATING TEMP.
0℃~50℃
STORAGE TEMP.
-25℃~60℃
CONNECTOR
24 Pin FPC
MAX GRAYSCALE
2
COLOR
Black,White
INTERFACE
SPI
FULL REFRESH(s)
3
POWER CONSUMPTION OF THE REFRESH(mW)
40
STANDBY POWER CONSUMPTION (mW)
0.006

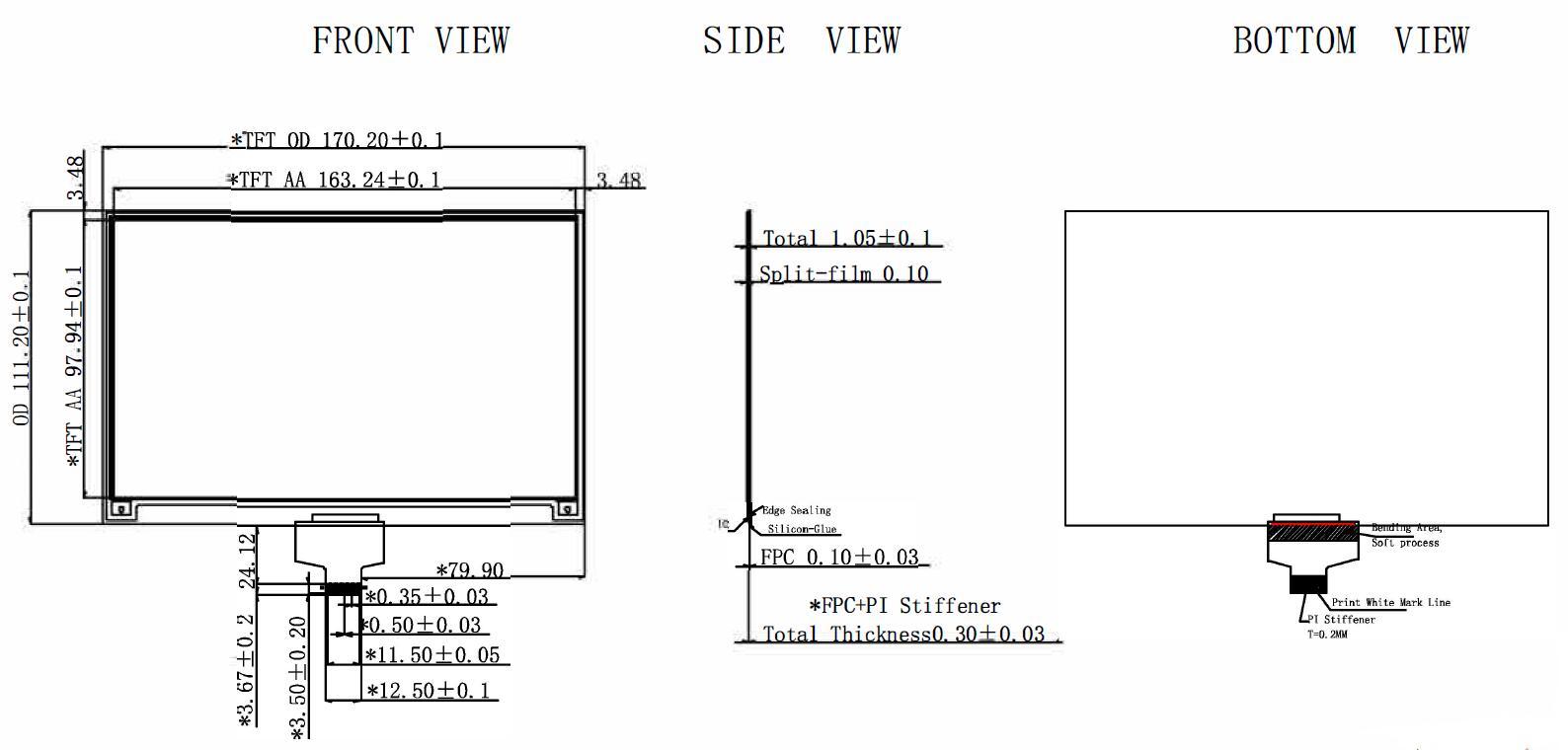

DRAWING
