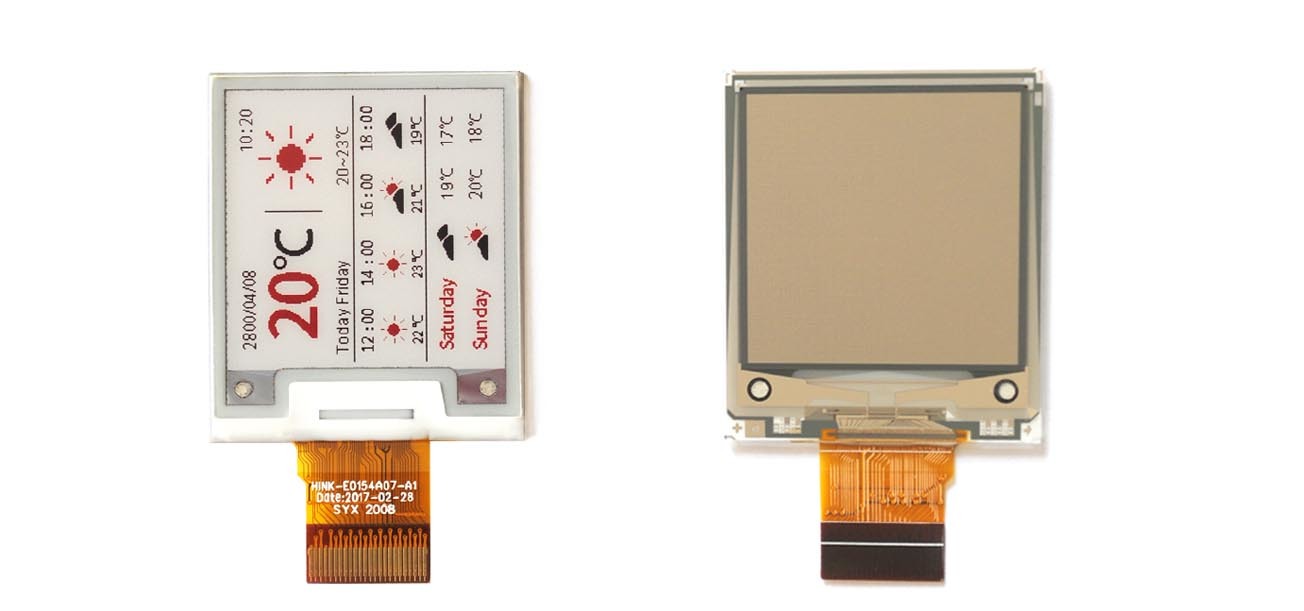

1.54 inch tri-color red E Ink screen color e-paper 200x200 resolution, GDEH0154Z90

Categroy:

Tri-Color E-Paper

This is a tri-color e ink screen, 1.54 inch, with 200x200 resolution, SSD1681, SPI interface.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 1.54 inch tri-color red E Ink screen color e-paper 200x200 resolution, GDEH0154Z90

    This is a tri-color e ink screen, 1.54 inch, with 200x200 resolution, SSD1681, SPI interface.

    COLOR 1.54 INCH E-PAPER

    Red, SSD1681, 200x200 Resolution, Paper-Like Displaying, Low Power







    INTRODUCTION

    This is a 1.54 inch tri-color E Ink screen with 200x200 resolution, SPI interface, and the color e-paper display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-ink scrren modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This tri-color E Ink screen display GDEH0154Z90 is perfect for low power devices powered by solar or batteries.

    We could provide Front light, Touch screen and other accessories for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    * This e-ink display module DOES NOT support partial updates

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software





    FEATURE

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor

    ●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful






    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.



    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



  •

    PARAMETERS

    PART NUMBER

    GDEH0154Z90

    TYPE

    Dot Matrix

    SIZE

    1.54 inch

    IC

    SSD1681

    RESOLUTION

    200x200

    OUTLINE SIZE(mm)

    37.32x31.80x0.9

    ACTIVE SIZE(mm)

    27x27

    PIXEL PITCH(mm)

    0.135x0.135

    OPERATING TEMP.

    0℃~40℃

    STORAGE TEMP.

    -25℃~60℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black, White, Red

    INTERFACE

    SPI

    FULL REFRESH(s)

    15

    POWER CONSUMPTION OF THE REFRESH(mW)

    6.6

    STANDBY POWER CONSUMPTION (mW)

    0.0099

    FRONT LIGHT, TOUCH SCREEN

    Optional

    1.54 Inch E-paper Display Related Products List >>





    DRAWING







  •
