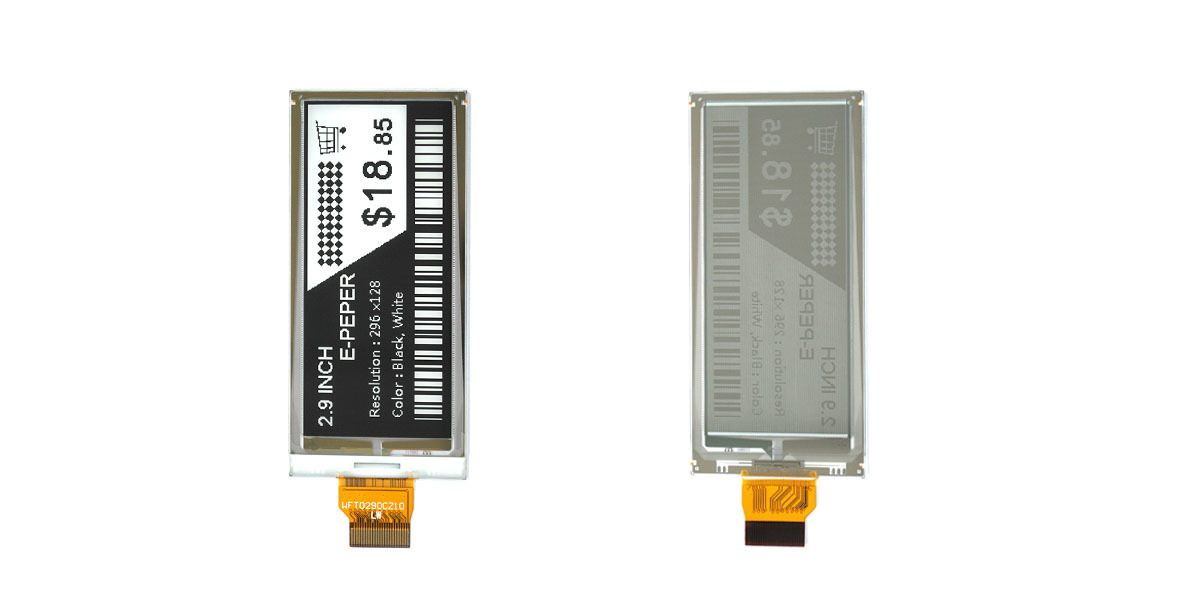

2.9 inch DES e-paper display wide operating temperature, GDEW029M06

Categroy:

Others

DES

Keywords:

paper

This is a 2.9 inch DES e-paper display, with 296x128 resolution, UC8151D, SPI interface. It has a higher contrast ratio.

messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.9 inch DES e-paper display wide operating temperature, GDEW029M06

    This is a 2.9 inch DES e-paper display, with 296x128 resolution, UC8151D, SPI interface. It has a higher contrast ratio.

    DES 2.9 INCH E-PAPER

    Des Technology, UC8151D, 296x128 Resolution, Paper-Like Displaying, Low Power, High Contrast





    INTRODUCTION

    This is a DES (what is DES?) 2.9 inch e-paper screen with 296x128 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries.

    We could provide Front light for you, if you need touch screen or other accessories, please contact us.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software






    FEATURE

    ●  Black and white monochrome is easy to read.

    ●  Versatile. Use in portrait or landscape format.

    ●  Contrast Ratio is higher than normal e-paper display.

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor.

    ●  Wide operating temperature range: -10℃~60℃







    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



    Keywords:
    • DES e-paper display
    • 2.9 inch DES e-paper display
  •

    PARAMETERS

    PART NUMBER

    GDEW029M06

    SIZE

    2.9 inch

    TECHNOLOGY

    DES

    IC

    UC8151D

    RESOLUTION

    296x128

    OUTLINE SIZE(mm)

    79x36.7x1.22

    ACTIVE SIZE(mm)

    66.896x29.056

    PIXEL PITCH(mm)

    0.227x0.226

    OPERATING TEMP.

    -10℃~60℃

    STORAGE TEMP.

    -25℃~70℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    2

    COLOR

    Black,White

    INTERFACE

    SPI

    FULL REFRESH(s)

    3

    POWER CONSUMPTION OF THE REFRESH(mW)

    18

    STANDBY POWER CONSUMPTION (mW)

    0.0165

    FRONT LIGHT

    Optional

    2.9 Inch E-paper Display Related Products List >>







    DRAWING













  •
