9.7 inch e-paper display resolution 1200x825 big size parallel panel, GDEP097TC2

Categroy:

Large E-Paper

Keywords:

paper

This is a 9.7 inch e-paper display, with 1200x825 resolution, Parallel interface, and the e paper panel supports partial refresh and 16 grayscale.

messages
Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 9.7 inch e-paper display resolution 1200x825 big size parallel panel, GDEP097TC2

    This is a 9.7 inch e-paper display, with 1200x825 resolution, Parallel interface, and the e paper panel supports partial refresh and 16 grayscale.

    INTRODUCTION

    This is a 9.7 inch e ink display panel with 1200x825 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 9.7 inch e-paper display GDEP097TC2 is an ideal choice for applications such as shelf label, industrial instrument, ebook reader and so on.

    We could provide Front light, Touch screen and other accessories for you.

    Sample code and datasheet are under the Datasheets & Files section.

    Use our free e-paper software to prepare your bitmap image for this display.




    FEATURE

    ●  Black and white monochrome is easy to read

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  Support Partial Refresh. The partial refresh rate is 1s/frame

    ●  Low power consumption, basically power is only required for refreshing





    DEVELOPMENT PLATFORM AVAILABEL

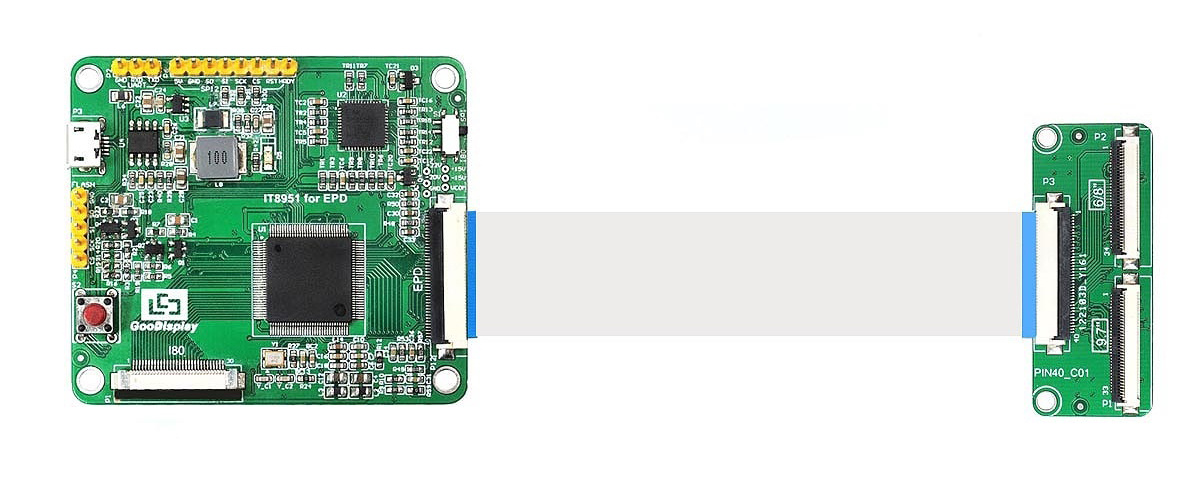

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

    Demo Kit: DERPI-T0A





    Keywords:
    • 9.7 inch e-paper display resolution 1200x825 big size parallel panel
  • PARAMETERS

    PART NUMBER

    GDEP097TC2

    SIZE

    9.7 inch

    TYPE

    Dot Matrix

    RESOLUTION

    1200x825

    OUTLINE SIZE(mm)

    218.8x156.425x1.15

    ACTIVE SIZE(mm)

    202.8x139.425

    PIXEL PITCH(mm)

    0.169x0.169

    OPERATING TEMP.

    0℃~50℃

    STORAGE TEMP.

    -20℃~70℃

    MAX GRAYSCALE

    16

    COLOR

    Black,White

    INTERFACE

    Parallel

    FULL REFRESH(s)

    1

    PARTIAL REFRESH(s) 1

    POWER CONSUMPTION OF THE REFRESH(mW)

    3980

    STANDBY POWER CONSUMPTION (mW)

    0.6





    DRAWING











  •
