13.3 inch E-ink Display Large E-Paper HD Electronic Paper Screen, GDEP133UT3

Categroy:

Large E-Paper

Parallel E-Paper

This is a 13.3 inch e-ink display large e-paper, with 1600x1200 resolution, Parallel interface, and this electronic paper screen supports 16 grayscales.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 13.3 inch E-ink Display Large E-Paper HD Electronic Paper Screen, GDEP133UT3

    This is a 13.3 inch e-ink display large e-paper, with 1600x1200 resolution, Parallel interface, and this electronic paper screen supports 16 grayscales.

    INTRODUCTION

    This is a 13.3 inch e-ink display large electronic paper screen, with 1600x1200 resolution, Parallel interface, and the e-paper display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This large electronic paper screen is perfect for low power devices powered by solar or batteries. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 13.3 inch e-ink display GDEP133UT3 is an ideal choice for applications such as industrial instrument, ebook reader, electronic menu and so on.

    We could provide Front light, Touch screen and other accessories for you.

    Specification is under the Datasheets & Files section.

    Use our free e-paper software to prepare your bitmap image for this display.




    FEATURE

    ●  Support Partial Refresh.

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  Wide temperature operating range from -15℃ to 65℃ with 1-bit WF

    ●  Low power consumption, basically power is only required for refreshing





    DEVELOPMENT PLATFORM AVAILABEL

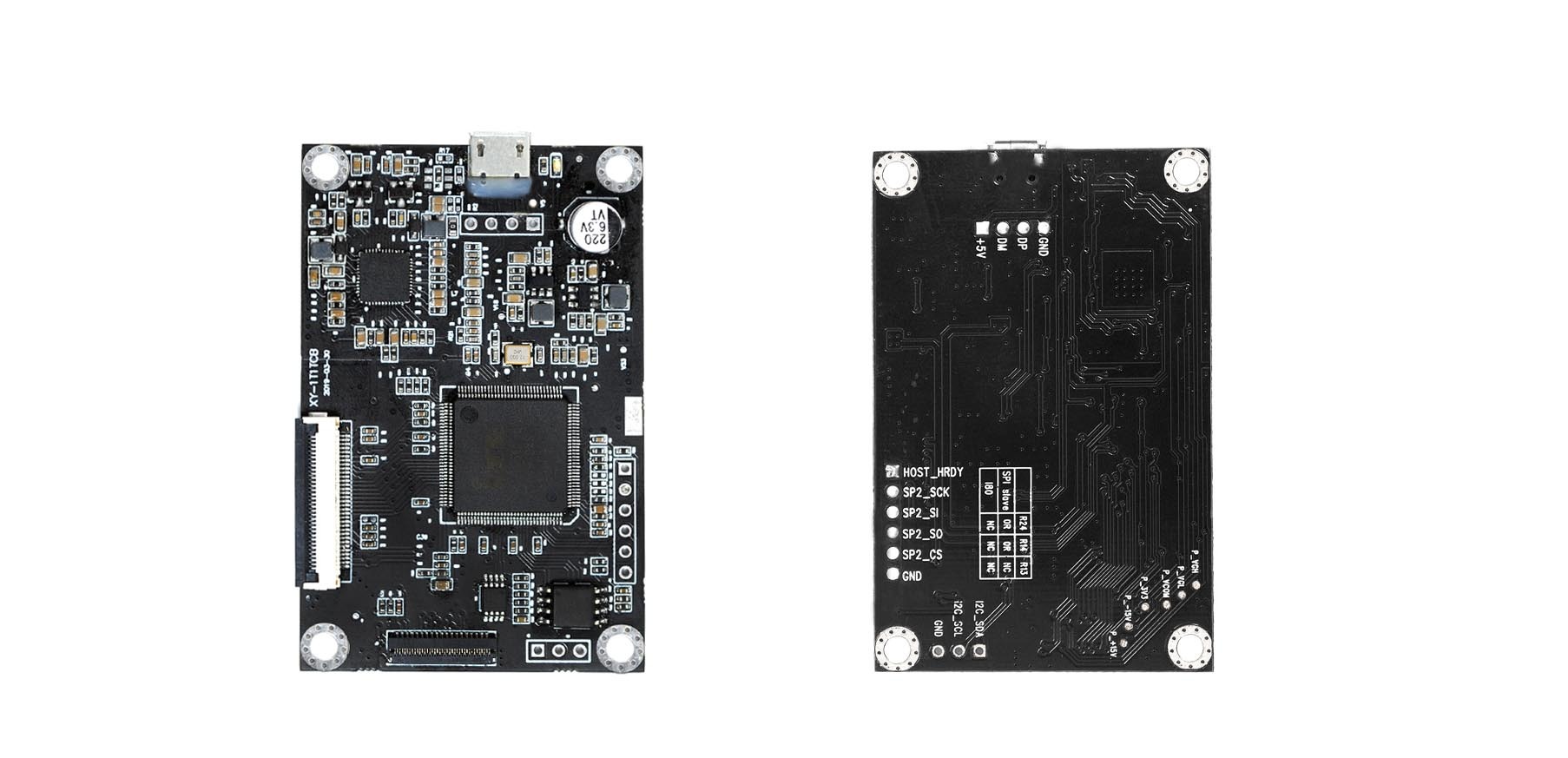

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

    Demo Kit: DEXA-C133



  • PARAMETERS

    PART NUMBER

    GDEP133UT3

    SIZE

    13.3 inch

    TYPE

    Dot Matrix

    RESOLUTION

    1600x1200

    OUTLINE SIZE(mm)

    285.80x213.65x0.78

    ACTIVE SIZE(mm)

    270.4x202.8

    PIXEL PITCH(mm)

    0.169x0.169

    OPERATING TEMP.

    -15℃~65℃

    STORAGE TEMP.

    -25℃~70℃

    MAX GRAYSCALE

    16

    COLOR

    Black,White

    INTERFACE

    Parallel

    FULL REFRESH(s)

    1

    POWER CONSUMPTION OF THE REFRESH(mW)

    265

    STANDBY POWER CONSUMPTION (mW)

    0.4





    DRAWING









  •
