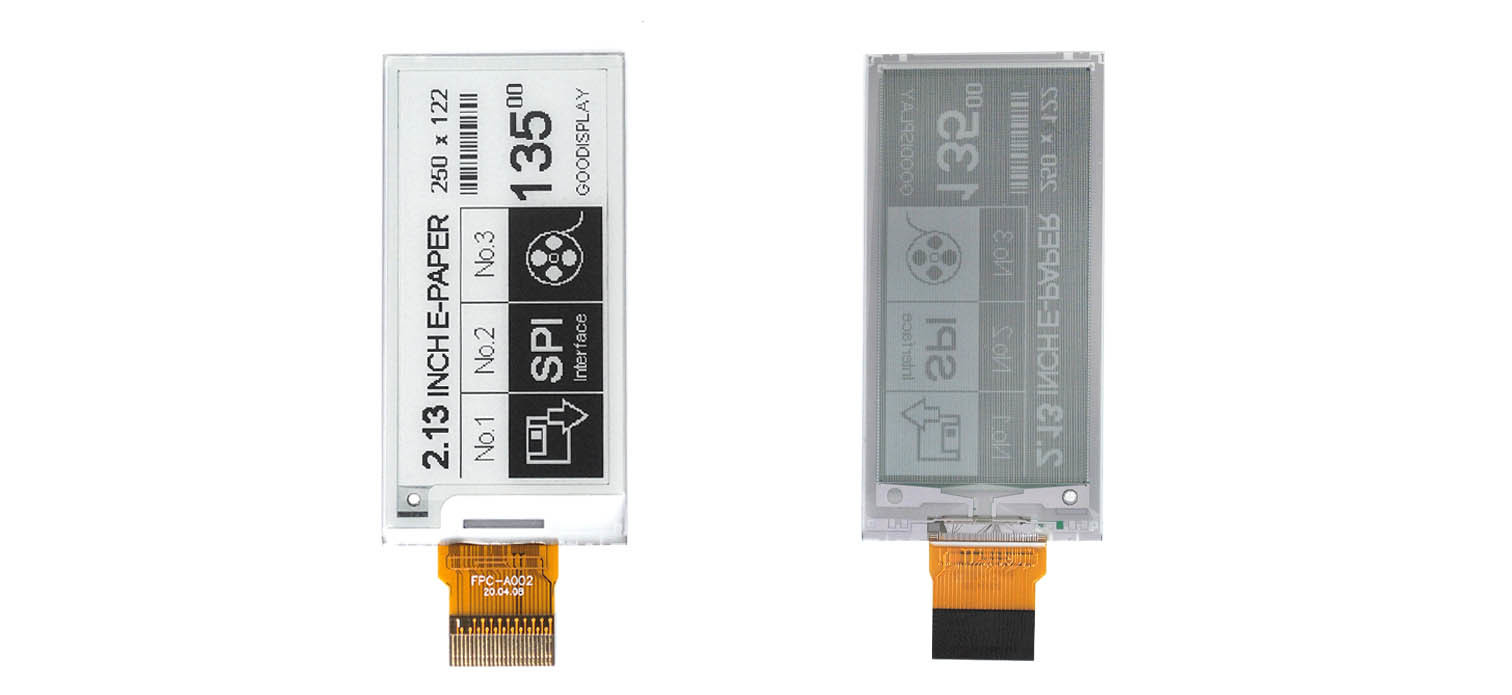

2.13 inch E Ink Display supports 1.5s fast refresh for E-paper price tag , GDEY0213B74

Categroy:

Small E-Paper

Fast Refresh E-Paper

This is a e ink display, 2.13 inch with 250x122 resolution, SSD1680Z, SPI interface. This e-paper also supports 4 grayscale, partial refresh and 1.5s fast refresh.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 2.13 inch E Ink Display supports 1.5s fast refresh for E-paper price tag , GDEY0213B74

    This is a e ink display, 2.13 inch with 250x122 resolution, SSD1680Z, SPI interface. This e-paper also supports 4 grayscale, partial refresh and 1.5s fast refresh.

    2.13 INCH E-PAPER

    Fast Update 1.5s, Partial Update, SSD1680Z, 250x122 Resolution, Paper-Like Displaying, Low Power, 4 Grayscale





    INTRODUCTION

    This is a 2.13 inch E Ink display with 250x122 resolution, SPI interface, supports 1.5s fast refresh, 3s full refresh, 0.4s partial refresh, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these E Ink modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink display GDEY0213B74 is perfect for low power devices powered by solar or batteries, such as electronic epaper price tag.

    We could provide Front light, Touch screen and other accessories for you.

    Use our free e-ink software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software






    FEATURE

      Support 4 Grayscale

      Support 1.5s Fast Refresh

    ●  Black and white monochrome is easy to read

    ●  Versatile. Use in portrait or landscape format

    ●  It supports partial refresh, the refresh rate is 0.4s/frame

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor









    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



    Keywords:
    • 1.54 inch DES e-paper display wide working temperature 152X152 resolution outdoor EPD
  •

    PARAMETERS

    PART NUMBER

    GDEY0213B74

    TYPE

    Dot Matrix

    SIZE

    2.13 inch

    IC

    SSD1680Z

    RESOLUTION

    250x122

    OUTLINE SIZE(mm)

    59.2x29.2x1.0

    ACTIVE SIZE(mm)

    48.55x23.7046

    PIXEL PITCH(mm)

    0.1943x0.1942

    OPERATING TEMP.

    0℃~50℃

    STORAGE TEMP.

    -25℃~70℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    4

    COLOR

    Black,White

    INTERFACE

    SPI

    FULL REFRESH(s)

    3

    FAST REFRESH(s)

    1.5

    PARTIAL REFRESH TIME(s)

    0.4

    POWER CONSUMPTION OF THE REFRESH(mW)

    10.5

    STANDBY POWER CONSUMPTION (mW)

    0.003

    FRONT LIGHT

    Optional
