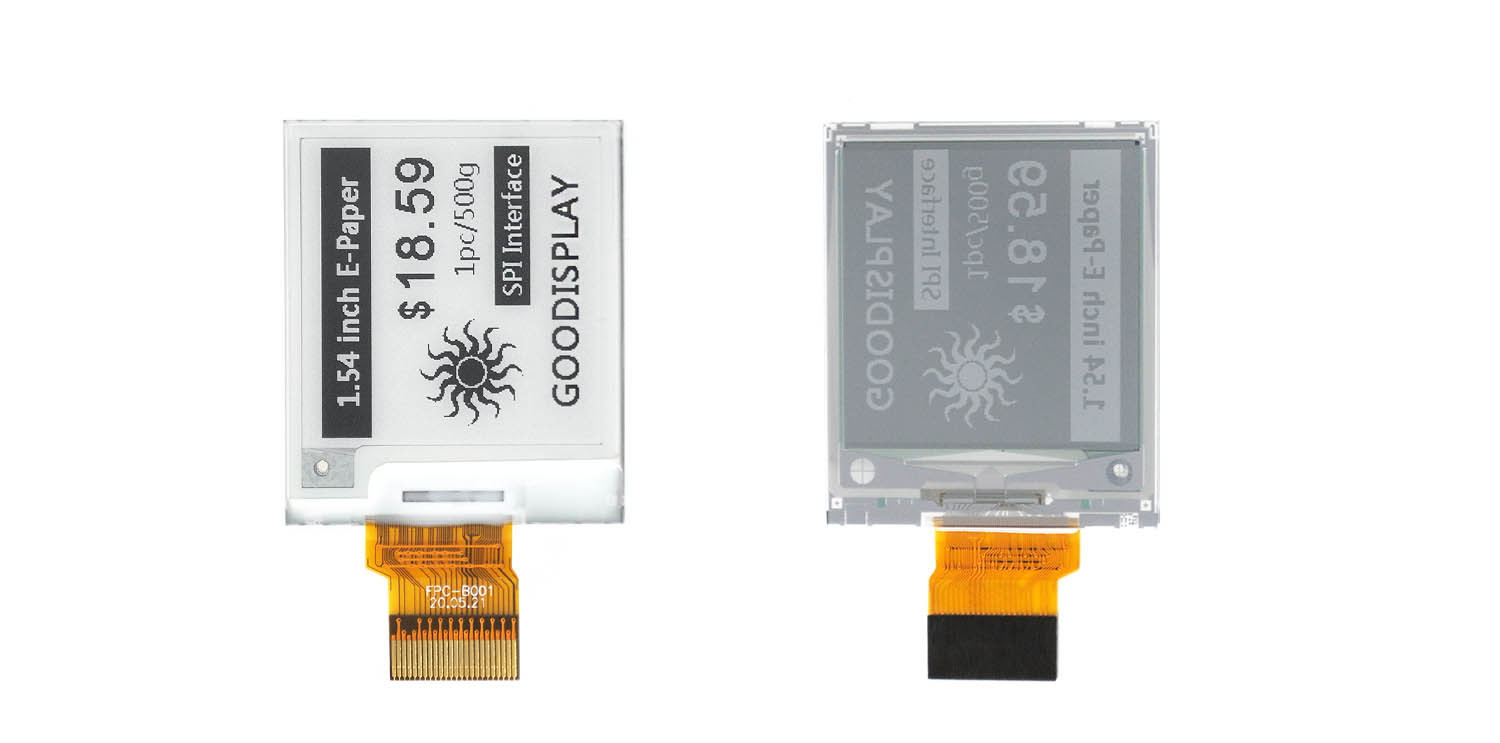

1.54 inch electronic paper display 200x200 Customizable 1.5s fast refresh e paper display for digital price tags, GDEY0154D67

Categroy:

Small E-Paper

Fast Refresh E-Paper

This is a electronic paper display, 1.54 inch, with 200x200 resolution, SSD1681, SPI interface, and the epaper screen supports partial refresh and 4 grayscale. It can be customized to achieve 1.5s fast refresh.

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 1.54 inch electronic paper display 200x200 Customizable 1.5s fast refresh e paper display for digital price tags, GDEY0154D67

    This is a electronic paper display, 1.54 inch, with 200x200 resolution, SSD1681, SPI interface, and the epaper screen supports partial refresh and 4 grayscale. It can be customized to achieve 1.5s fast refresh.

    1.54 INCH E-PAPER

    Fast Update(Customizable), Partial Update, SSD1681, 200x200 Resolution, Paper-Like Displaying, Low Power, 4 Grayscale







    INTRODUCTION

    This is a 1.54 electronic paper display with 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e paper display modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e paper display GDEY0154D67 is perfect for low power devices powered by solar or batteries.

    We could provide Front light, Touch screen and other accessories for you.

    Use our free e-paper software to prepare your bitmap image for this display, also you could make the picture on our bitmap conversion website: www.it-iot.cn/English.html

    You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: https://github.com/abao66669999/Good-Display-Software

    * NoteWe can customize the OTP code to make the refresh time of this 1.54 inch e-paper display GDEY0154D67 reach to 1.5s, if you need, please contact us.






    FEATURE

    ●  Customizable 1.5s Fast Refresh

    ●  Black and white monochrome is easy to read.

    ●  Versatile. Use in portrait or landscape format.

    ●  It supports partial refresh, the refresh rate is 0.26s/frame.

    ●  Bistable. (Will continue to display with no power source)

    ●  I2C Signal Master Interface to read external temperature sensor.









    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper Adapter Board that makes connecting our ePaper simple and fast.

    STM32 Arduino UNO ESP8266


    Raspberry Pi ESP32



    Keywords:
    • 1.54 inch DES e-paper display wide working temperature 152X152 resolution outdoor EPD
  •

    PARAMETERS

    PART NUMBER

    GDEY0154D67

    TYPE

    Dot Matrix

    SIZE

    1.54 inch

    IC

    SSD1681

    RESOLUTION

    200x200

    OUTLINE SIZE(mm)

    31.8x37.32x0.98

    ACTIVE SIZE(mm)

    27x27

    PIXEL PITCH(mm)

    0.14x0.14

    OPERATING TEMP.

    0℃~50℃

    STORAGE TEMP.

    -25℃~70℃

    CONNECTOR

    24 Pin FPC

    MAX GRAYSCALE

    4

    COLOR

    Black,White

    INTERFACE

    SPI

    FULL REFRESH(s)

    2

    PARTIAL REFRESH TIME(s)

    0.26

    POWER CONSUMPTION OF THE REFRESH(mW)

    4.5

    STANDBY POWER CONSUMPTION (mW)

    0.003

    FRONT LIGHT, TOUCH SCREEN

    Optional

    1.54 Inch E-paper Display Related Products List >>





    DRAWING







  •
