6 inch HD large parallel e-paper display 1024x758 resolution, GDE060F3

Categroy:

Large E-Paper

Parallel E-Paper

1024x758/ Partial Refresh/ 16 Grayscale

Buy It Now
  • Description
  • Specification
  • Video
    • Commodity name: 6 inch HD large parallel e-paper display 1024x758 resolution, GDE060F3

    1024x758/ Partial Refresh/ 16 Grayscale

     INTRODUCTION

    This is a 6 inch e-paper display panel with 1024x758 resolution, Parallel interface, and the e-paper display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper screen is perfect for low power devices powered by solar or batteries. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.  Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 6 inch e-paper display GDE060F3 is an ideal choice for applications such as shelf label, industrial instrument, ebook reader and so on.

    We could provide Front light, Touch screen and other accessories for you.

    Sample code and datasheet are under the Datasheets & Files section.

    Use our free e-paper software to prepare your bitmap image for this display.




    FEATURE

    ●  Black and white monochrome is easy to read

    ●  Versatile. Use in portrait or landscape format

    ●  Bistable. (Will continue to display with no power source)

    ●  Support Partial Refresh. The partial refresh rate is 1s/frame

    ●  Low power consumption, basically power is only required for refreshing





    DEVELOPMENT PLATFORM AVAILABEL

    We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

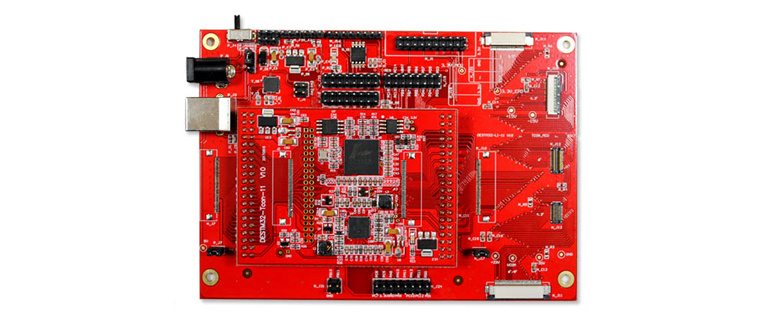

    Demo Kit: DESTM32-T




  • PARAMETERS

    PART NUMBER

    GDE060F3

    SIZE

    6 inch

    TYPE

    Dot Matrix

    RESOLUTION

    1024x758

    OUTLINE SIZE(mm)

    138.4x101.8x1.18

    ACTIVE SIZE(mm)

    122.368x90.581

    PIXEL PITCH(mm)

    0.1195x0.1195

    OPERATING TEMP.

    0℃~50℃

    STORAGE TEMP.

    -20℃~70℃

    CONSTRAST RADIO

    8:1

    MAX GRAYSCALE

    16

    COLOR

    Black,White

    INTERFACE

    Parallel

    FULL REFRESH(s)

    1

    PARTIAL REFRESH(s) 1

    POWER CONSUMPTION OF THE REFRESH(mW)

    600

    STANDBY POWER CONSUMPTION (mW)

    0.4

    FRONT LIGHT, TOUCH SCREEN

    Optional





    DRAWING
